GridGo – Smart Energy Storage for a Sustainable Future

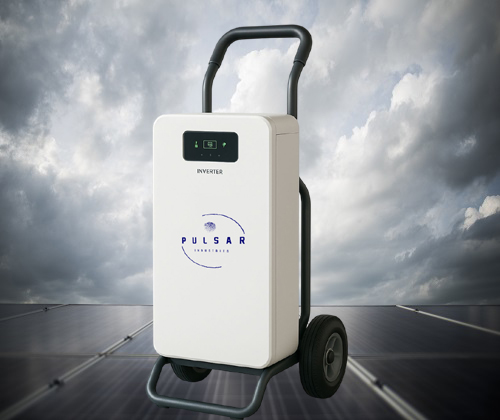

The Pulsar Gridgo is a cutting-edge Mobile Emergency Backup Power system, expertly designed to keep your household running during grid outages. Mounted conveniently on a dolly, this portable powerhouse delivers reliable, clean energy precisely when you need it.
Core Power & Performance
With a 3000W Rated Inverter Power and 5120Wh of rated energy, the Gridgo is built to support your essential home appliances and electronics. Its sophisticated system includes:
-
Robust Input: Handles a maximum input power of 4000W and a wide MPPT Voltage Operating Range of , making it highly versatile for charging.
-
High-Current Handling: Capable of a maximum charging and discharge current of 200A for rapid energy transfer.
-
Flexible Output: Provides rated output voltages of and and accepts an AC Voltage Range of .
Smart Monitoring and Scalable Design
The Gridgo is more than just a battery; it’s a smart energy solution:
-
Wifi-Monitoring App: Keep track of your system’s status and performance remotely with the dedicated monitoring app.
-
Seamless Communication: Features CAN/RS485 comm with the inverter for robust system integration.
-
Portable & Durable: Weighing 250 lbs and mounted on a dolly, it’s designed to be maneuvered for optimal use and storage.
Technical Specification
- Mobile Emergency Backup Power for household use mounted on a dolly.
- Wifi-Monitoring app
- Maximum input power: 4000W
- MPPT voltage operating range: 120–450V
- Maximum input voltage: 500VDC.
- Maximum input current: 100A
- Rated energy: 5120Wh.
- Maximum charging voltage: 28.5V.
- Maximum discharge current: 200A.
- Communication: CAN/RS485 comm with inverter.
- MPPT voltage operating range: 120–450V
- Maximum input voltage: 500VDC.
- Maximum input current: 100A
- Rated energy: 5120Wh.
- Maximum AC Voltage Range: 170 – 280VAC. voltage: 28.5V.
- Rated output voltage: 120V
- Weight: 250 lbs.
Expand Your Energy Future
Customize the Gridgo to meet your long-term energy goals with these powerful options:
-
Integrated Solar Ready: Choose the separate dolly option equipped with 4–8 prewired 400W solar panels to turn your unit into an off-grid charging solution.
-
Massive Capacity Expansion: Easily mount Additional Units to the system, allowing you to increase the total capacity up to for extended backup runtime.
