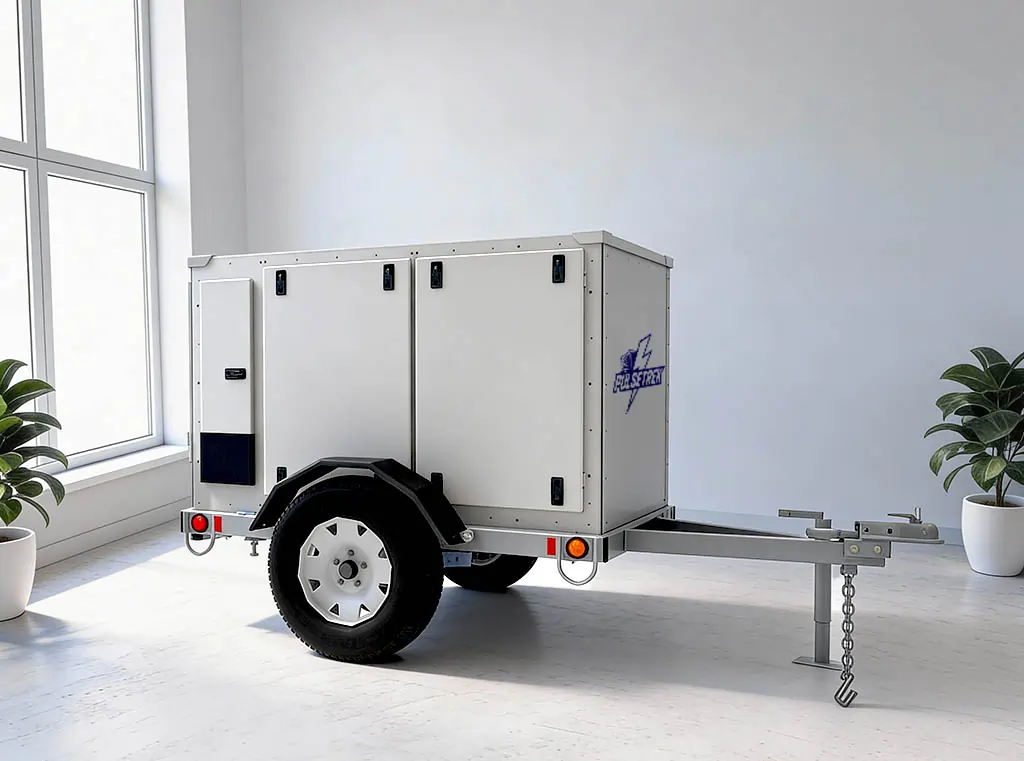

PulseTrek Lithium Power Backup
Reliable, Portable, and Eco-Friendly Power Solution for Construction Sites
Lithium Battery Backup System for Home
Power outages can disrupt your daily life, damage electronics, and interrupt essential appliances. A lithium battery backup system for home provides a reliable and efficient solution to keep your home powered during unexpected outages. With advanced lithium technology, these systems store energy and automatically supply backup power when the grid fails.
Key Features
PulseTrek offers a clean, quiet, and dependable power source designed to withstand the toughest conditions on construction sites. Say goodbye to noisy generators and costly fuel with our maintenance-free lithium battery backup.
| PULSETREK TECHNICAL SPECIFICATION | |||
|---|---|---|---|
| MODEL NAME / PARAMETER | BASE MODEL | BASE MODEL+ | PERFORMANCE MODEL |
| GENERAL | |||
| Transfer Switch | YES, 50A | YES, 50A | YES, 100A |
| Max. AC Input Current | 50A | 50A | 2X100A |
| Enclosure | NEMA 3R, Powder Coat Steel | NEMA 3R, Powder Coat Steel | NEMA 3R, Powder Coat Steel |
| Power Outlets | 2X NEMA 5-15R, 15A, 125V | 2X NEMA 5-15R, 15A, 125V | 3X NEMA 5-20, 20A, 125V |
| Charging Receptacle | NEMA 5-15, 15A, 125V | NEMA 5-15, 15A, 125V | NEMA 10-30, 30A, 240V |
| Generator Receptacle | NEMA 5-30, 30A, 125V, 3750 Watt | NEMA 5-30, 30A, 125V, 3750 Watt | NEMA 10-30, 30A, 240V |
| Vehicle Charging Outlet | N/A | NEMA 5-20, 20A, 125V EV | NEMA 14-50, 50A, 240V |
| EV Charger Included | N/A | YES, L6A LEVEL 1, 15FT | YES, 32A LEVEL 2, 25FT |
| HMI | Touchscreen Interface | Touchscreen Interface | Touchscreen Interface |
| Remote Monitoring | Standard | Standard | Standard |
| External Dimensions (L x W x H - inches) | 62L X 35W X 37H | 62L X 35W X 37H | 62L X 35W X 37H |
| External Dimensions (L x W x H - inches) | 110L X 60W X 55H | 110L X 60W X 55H | 110L X 60W X 55H |
| System Weight | 1400 LBS | 1700 LBS | 1900 LBS |
| Operational Temperature Charging | 0C TO 45C | 0C TO 45C | 0C TO 45C |
| Operational Temperature Discharging | -20C TO 50C | -20C TO 50C | -20C TO 50C |
| Storage Temperature | -20C TO 50C | -20C TO 50C | -20C TO 50C |
| BATTERY SYSTEM | |||
| Configuration | 1s3p | 1s6p | 1s12p |
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Capacity | 300Ah | 600Ah | 600Ah |
| Total Energy | 15KWh | 30KWh | 30KWh |
| Chemistry | LFP | LFP | LFP |
| Cycles | 6000+ | 6000+ | 6000+ |
| Charging Voltage | 56.8V | 56.8V | 56.8V |
| Max. Continuous Charging Current | 35A | 35A | 100A (50A Recommended) |
| Max Continuous Discharging Current | 35A | 35A | 100A (50A Recommended) |
| State of Charge Cutoff | 20% SOC | 20% SOC | 20% SOC |
| TRAILER | |||
| Capacity / Net Payload | 2000 LBS | 2600 LBS | 2200 LBS |
| Gross Axle Weight Rating | 3000 LBS | 3000 LBS | 3000 LBS |
| Gross Vehicle Weight Rating | 3500 LBS | 3500 LBS | 3500 LBS |
| Height of Bed | 18-20 IN | 18-20 IN | 18-20 IN |
| Road Clearance | 7-10 IN | 7-10 IN | 7-10 IN |
| INVERTER | |||
| DC Input Voltage Range | 38-66V | 9.5-66V | |
| Output | 120VAC @60 Hz | 120VAC @60 Hz | 230 VAC @ 50 Hz |
| Cont. Output Power at 25C | 3000VA | 3000VA | 10000W |
| Cont. Output Power at 25C | 2400W | 2400W | 8000W |
| Cont. Output Power at 40C | 2200W | 2200W | 6500W |
| Cont. Output Power at 65C | 1700W | 1700W | 4500W |
| Peak Power | 5500W | 20000W | |
| Maximum Efficiency | 95% | 94-96% | |
| ZERO LOAD POWER | |||
| Zero Load Power | 11W | 11W | 60W |
| Zero Load Power in AES Mode | 7W | 7W | 40W |
| Zero Load Power in Search Mode | 2W | 2W | 15W |
| CHARGER | |||
| AC Input Voltage | 90-140VAC | 187-250VAC | |
| AC Input Frequency | 45-65Hz | 50/60Hz | |
| Charge Voltage | 55.2V | 55.2V | 55.2V |
| Storage Mode | 52.8V | 52.8V | 52.8V |
| Max Battery Charge Current | 35A | 35A | 100A |
| OPTIONS | |||
| Solar PV | Solar Upgrade Kit | Solar Upgrade Kit | Solar Upgrade Kit |
| Lighting | Stadium Lighting Kit | Stadium Lighting Kit | Stadium Lighting Kit |
| Security | Security Camera Kit | Security Camera Kit | Security Camera Kit |
| Vehicle Charging | Level 1 Vehicle Charging | Level 1 Vehicle Charging | Level 2 Vehicle Charging |
| 240V Charging | 120VAC @60 Hz | 240VAC @60 Hz | |
| Generator | 120VAC @60 Hz | 240VAC @60 Hz | |
